36683 | Ø 1200 90 45.2 Arm slots 0.3 mm
EAN: 8432611136588
Do you have questions about the product?
36683 | Ø 1200 90 45.2 Arm slots 0.3 mm
EAN: 8432611136588
Stock Availability
Trade Customers log in to see price and stock information for the product.og in to see price and stock information for the product.
Technical description

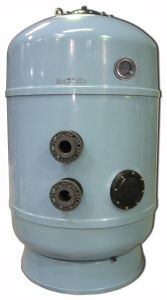

Filter laminated in polyester and fibreglass available in diameters of 650, 800, 1000 and 1200 mm. It has a 1.2-m filter bed and is available with an arm collector system and a plate collector system. Complies with filtration requirements as per standard EN 16713-1.
• DN 200 filter lid with quick-locking system for 650 and 800 models and DN 400 bolt down lid for 1000 and 1200 models.
• DN200 lateral manhole with bolt down cover.
• Filter interior left with natural resin finish.
• EASTAR sightglass as standard. Further sight glasses are available on request.
• Inner pipe and fittings in PVC, PP and ABS.
• Pressure gauge included in filter lid.
• Gaskets in EPDM and all screw fittings in stainless steel.
• Vinylester option. In this case, internal layer is manufactured from vinylester resin (and not only the top layer in contact with the water), to a maximum chemical resistance of 0.4 ppm of ozone dissolved and to a maximum temperature 50°.
• Comes in RAL 5024 blue.
Do you have questions about the product?
36683 | Ø 1200 90 45.2 Arm slots 0.3 mm
Version: 4
Date: 28-04-2017
