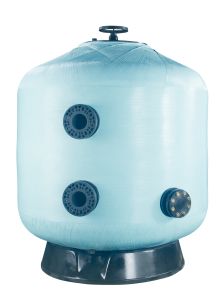

Vic filters.
Wound industrial filters with diameters from 1050 mm to 3000 mm, with the corresponding connections for the different filtration speeds. Replaces the Atenas model. New top cover system with quick closing system that facilitates opening and closing operations. Mouth 400 x 500 mm. Incorporates the air purge in the lid in order to completely eliminate the air from the filter. 1½" ABS injected collector arms with the necessary lengths for each filter and without intermediate links.
Lengths range from 90 mm to 525 mm. A lower pressure drop is also achieved due to the larger diameter of the arms.
The collector pipes are injected in PVC and are Ø 90 mm. Water draining and air venting will be faster thanks to the incorporation of Ø 1" air and water drains. The distance between the top of the sand bed and the diffuser head ("freeboard") has been increased to ensure a better distribution of the water in the filtration
to ensure better water distribution during the filtration phase and to prevent sand from being discharged into the drain during the washing phase.
Filter bed height 1 m.
Valve battery not included.
For filters with crepine plates, it is recommended to install a side outlet (Ø 400 mm or Ø 225 mm) for emptying the filter media.
