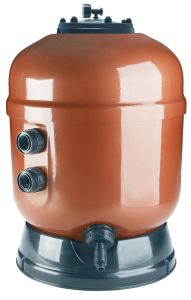

Atlas filter.
Sand filters in reinforced polyester.
Technical characteristics:
• Built with polyester resins and fiberglass.
• Excellent finish with Gel-coat color RAL 8029.
• The filter has been designed with a superior safety coefficient, to guarantee a perfect operation.
• The union of the two filter bodies is made by means of a specially reinforced sealing with fiber and polyester resin.
polyester resin.
• Transparent plastic cover with high chemical resistance.
• High reliability closing of the cover by means of screws.
• Assembled with 1" manifolds and diffuser made of unalterable plastic material.
• Inner piping reinforced with PN-16 pipes.
• Sand discharge at 2½".
• Equipped with pressure gauge, manual air and water purge.
• Connections for six-way selector valve with operations of filtration, washing, rinsing, recirculation,
emptying and closing.
• AstralPool innovation: the filter has a built-in safety valve to prevent any overpressure.
• Maximum pressure: 2.5 kg/cm².
